Description
The GS-SM804A3 is a highly integrated wireless module featuring dual-band Wi-Fi 6 and Bluetooth 5.4 connectivity, designed for next-generation smart hardware applications. Supporting both 2.4GHz and 5.8GHz frequency bands with data rates up to 286.8Mbps, it delivers fast, reliable, and efficient wireless communication performance. With support for Wi-Fi 6 advanced features including TWT, MU-MIMO, OFDMA, STBC, and beamforming, the module helps improve network efficiency and connection stability in complex wireless environments.
Featuring an ultra-compact 7×7×1.4mm module design, the GS-SM804A3 integrates Wi-Fi and Bluetooth functions through SDIO 3.0 and UART interfaces, providing a flexible wireless solution with simplified system integration. Its compact form factor and high level of integration make it suitable for space-constrained devices, including IoT terminals, AI hardware, smart home products, and intelligent electronic applications.
Product Parameter(specification)
| Dual-Band Wi-Fi 6 Module with 2.4GHz and 5.8GHz Frequency Support |
| IEEE 802.11 b/g/n/ac/ax Standard Support |
| Data Rates Up to 286.8Mbps |
| 20MHz and 40MHz Bandwidth Support |
| Support for Wi-Fi 6 TWT Technology |
| Support for MU-MIMO and OFDMA Features |
| Support for STBC and Beamforming Technology |
| Bluetooth 5.4 Connectivity Support |
| Compatible with Bluetooth 2.1+EDR / 3.0 / 4.x / 5.3 / 5.4 |
| SDIO 3.0 Interface Support |
| Support for STA, AP and Wi-Fi Direct Modes |
| WEP, WPA, WPA2, WPA3-SAE Personal and MFP Security Support |
| Advanced Bluetooth Master and Slave Topology Support |
| Compact Module Size: 7mm × 7mm × 1.4mm |

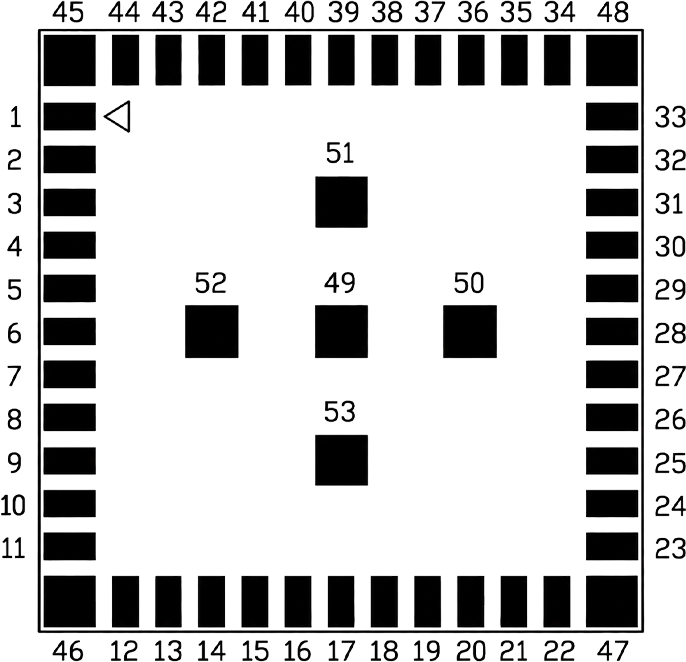

Hardware Interface

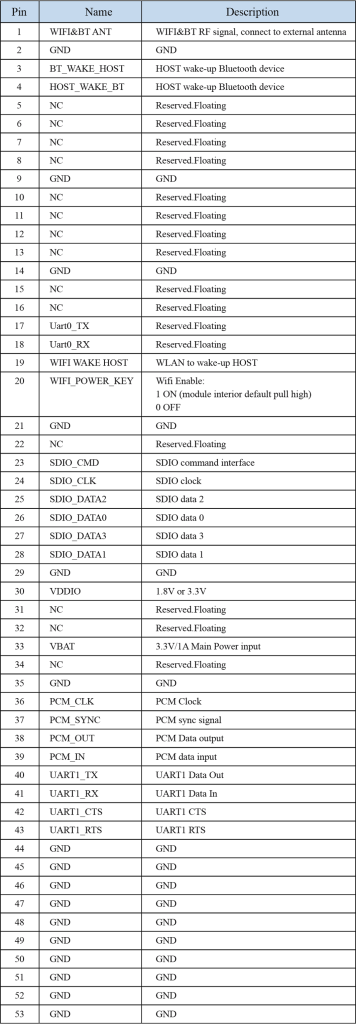

Pins Descroption

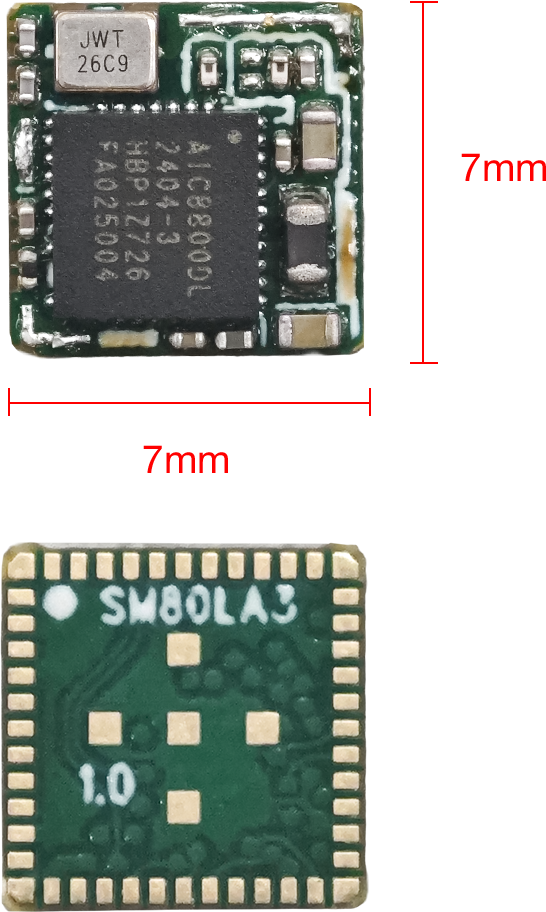

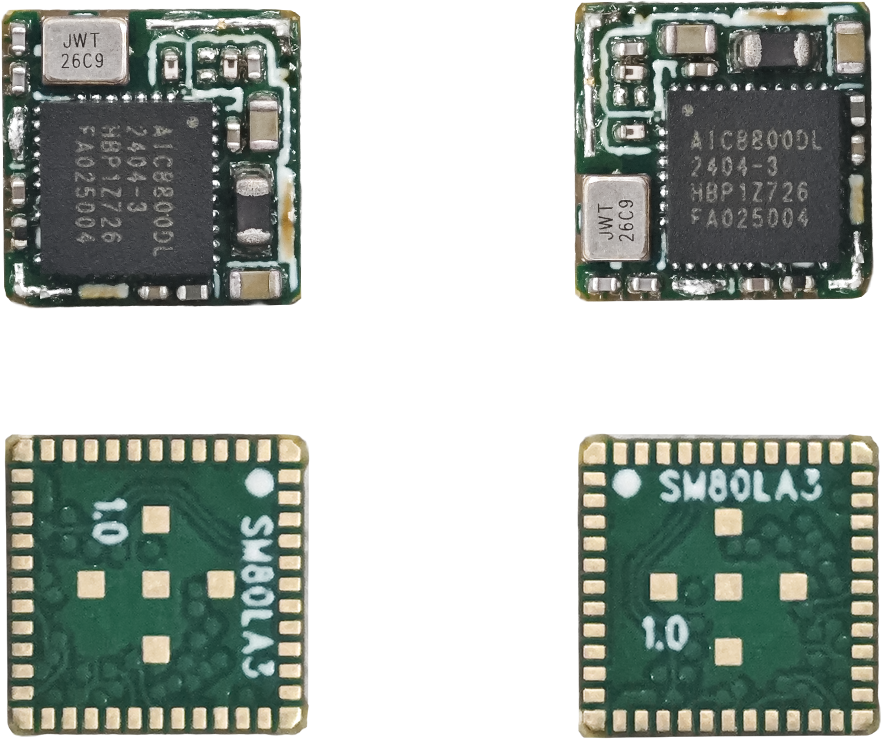

Hardware Display
