Description
GS-SM80LA3-S is a compact WiFi 6 and BLE 5.2 wireless module designed for next-generation AIoT and smart hardware applications. Based on the AIC8800DL chipset, it integrates high-speed WiFi connectivity and low-power Bluetooth communication into an ultra-small 7 × 7 × 1.8mm form factor, providing a flexible wireless solution for space-constrained intelligent devices.
Supporting IEEE 802.11b/g/n/ax WiFi 6 standards, SDIO 2.0 interface, and BLE 5.2 connectivity, GS-SM80LA3-S enables reliable device-to-cloud communication, mobile device interaction, and smart hardware networking. With excellent wireless performance, compact design, and easy integration, it is suitable for AI voice devices, smart wearables, smart home products, and various IoT terminals requiring stable and efficient connectivity.
Product Parameter(specification)
| Product Type: 2.4GHz WiFi 6 & BLE 5.2 Wireless Module |
| WiFi Standard: IEEE 802.11b/g/n/ax WiFi 6 |
| Frequency Band: 2.4GHz ISM Band |
| Wireless Features: MU-MIMO, OFDMA Support |
| Bluetooth: BLE 5.2 |
| Data Rate: Up to 286.8Mbps (TX) / 229.4Mbps (RX) |
| Bandwidth: 20MHz / 40MHz |
| Bluetooth Mode: Advanced Master & Slave Topologies |
| Modulation: BPSK / QPSK / 16-QAM / 64-QAM / 256-QAM |
| Security: WEP / WPA / WPA2 / WPA3-SAE Personal / MFP |
| Interface: WiFi: SDIO 2.0; Bluetooth: UART |

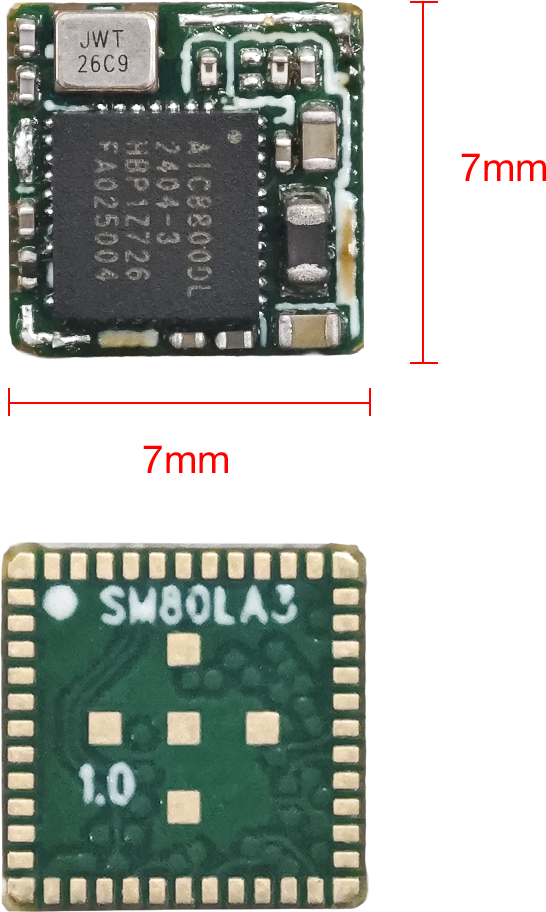

| Module Size: 7 × 7 × 1.8mm |

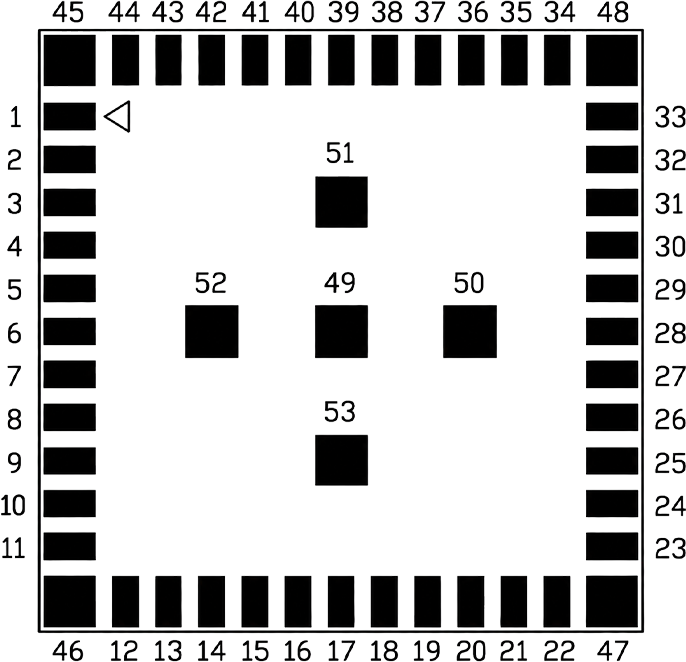

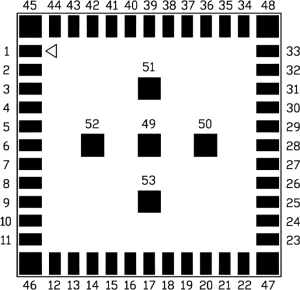

Hardware Interface
Pins Descroption

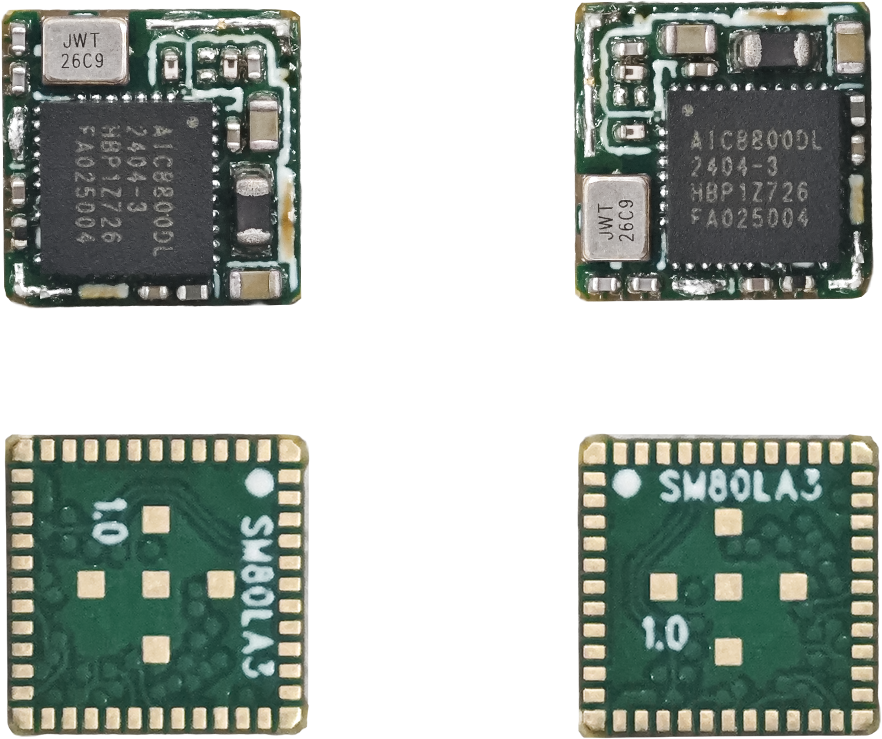

Hardware Display
