Description
LoRaWANNode is a LoRa module integrated with MCU .The product consists of STM32 MCU and Semtech LoRa chip SX1276 Users can use it to develop their own LoRaWAN Protocol.
The SX1276 transceivers feature the LoRa long range modem that provides ultrarange spread spectrum communication and high interference immunity whilst minimizing current consumption.
The product is packaged in SMD and can be produced quickly through standard SMT equipment.
Product Parameter(specification)
| STM32L052C8T6 Microcontrollers incorporate the high-performance Arm Cortex- + 32 bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), High-speed embedded memories (64 Kbytes of Flash program memory, 2 Kbytes of data EEPROM and 8 Kbytes of RAM) |
| LoRa Chip: SX1276 LoRa Modem |
| Support 1 channel UART communication |
| Support dual band 433 / 470MHz and 868 / 915MHz |
| Supports 12 × GPIO |
| +20dBm – 100 mW constant RF output vs. V supply |
| FSK, GFSK, MSK, GMSK, LoRa and OOK modulation |
| Programmable bit rate up to 300kbps |
| High sensitivity: down to -148dBm |
Hardware Interface

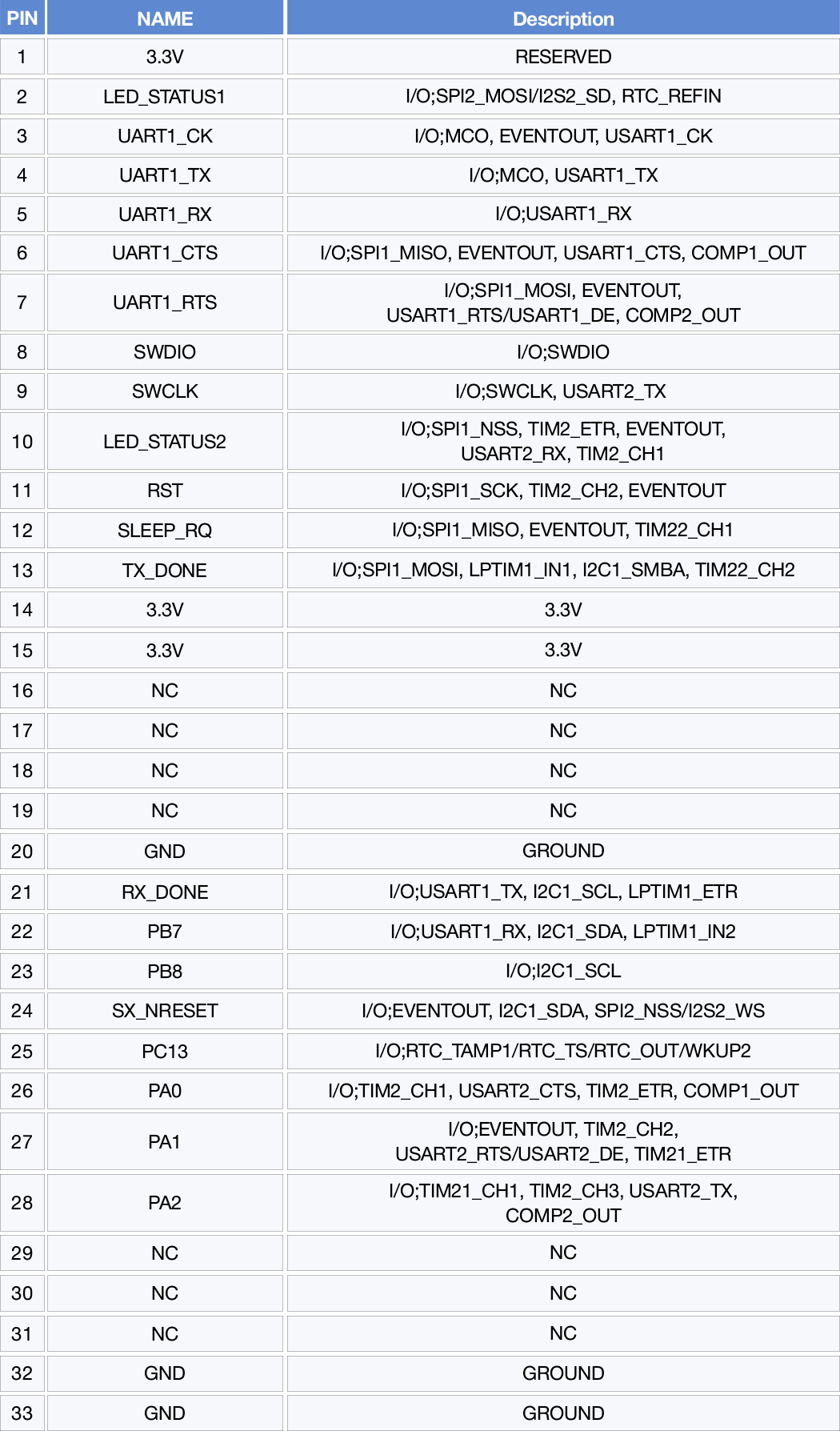

Pins Descroption

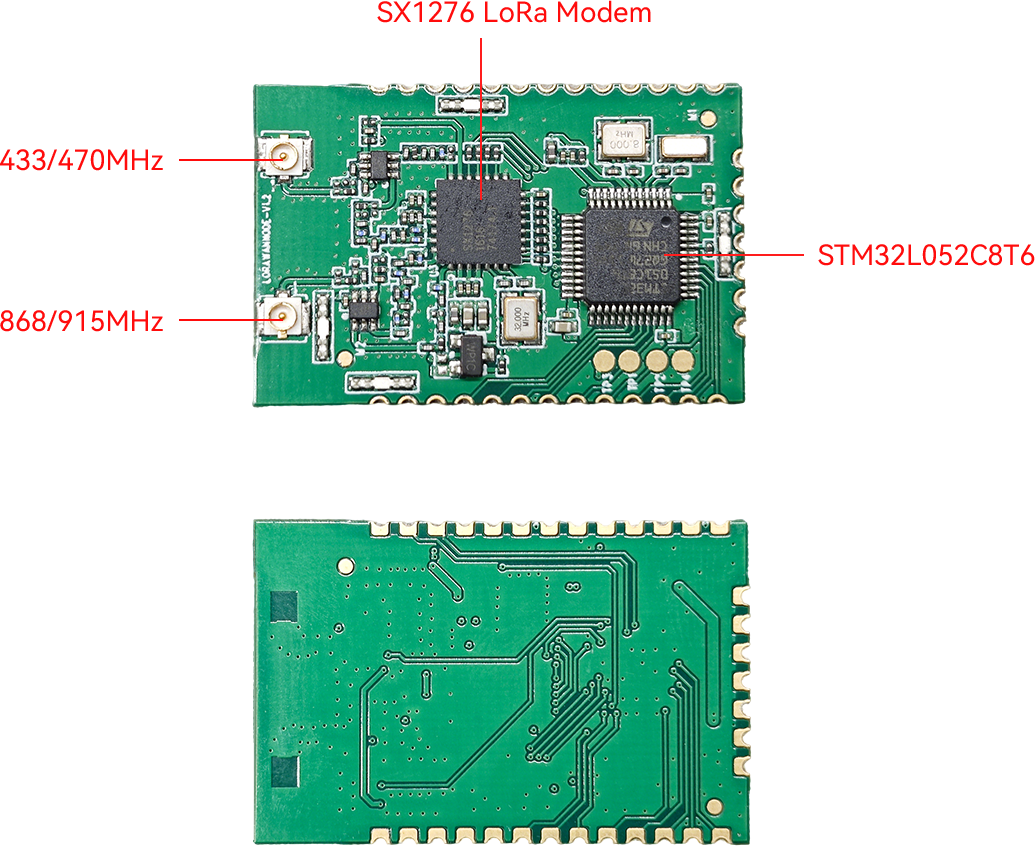

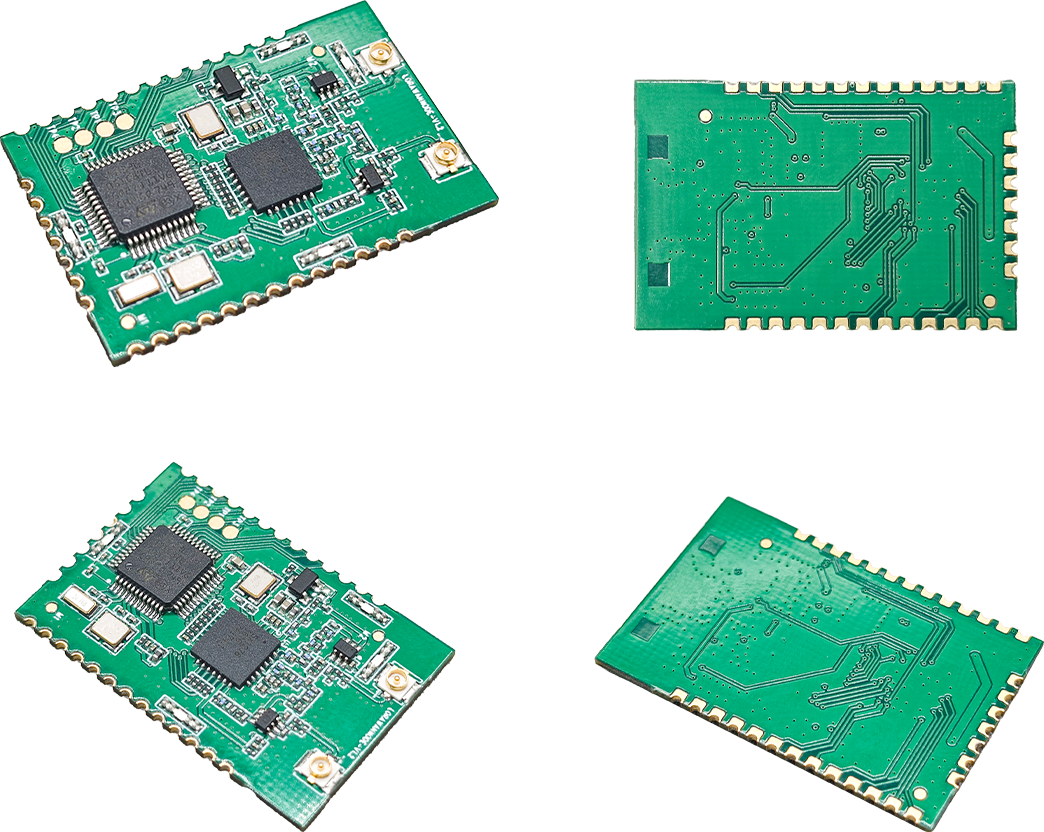

Hardware Display
