Description
MiniBox V3.2 is exquisite portable and small wireless router that supports 5G WiFi and 2.4G WiFi. It compatible 802.11a/b/g/n/ac maximum wireless rate can reach to 300Mbps. It is made up of base board and module. The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11n 2×2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. The module use the QCA9887 chip which integrates a multi-protocol MAC, PHY, analog-to-digital/digital-to-analog converters (ADC/DAC), 1×1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.
MiniBox V3.2 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time. It allows users not only able to share their internet by wired connection but also wireless connection. Its power consumption is very low.
Product Parameters
| CPU: QCA9531 with 550 MHz MIPS 24Kc and QCA9887 |
| Supports 20/40/80MHz at 5GHz WiFi |
| Supports IEEE802.11b/g/n 2.4GHz WiFi |
| RAM: 128MB DDR2 RAM (64MB Optional) |
| Flash: 16MB SPI NOR Flash (8MB/32MB/64MB Optional) |
| USB: 1 × Micro USB (Support 1 × USB2.0) |
| Power Supply Voltage: 5V |
| Port: 1 x FE WAN + 1 x FE LAN |
| Antenna: 3 × External Antenna |
| 1 × RESET Button |
| 1 × UART Console |
| 1 × System Status LED |
| Dimensions: 64mm x 44.7mm x 22.5mm (L x W x H) |

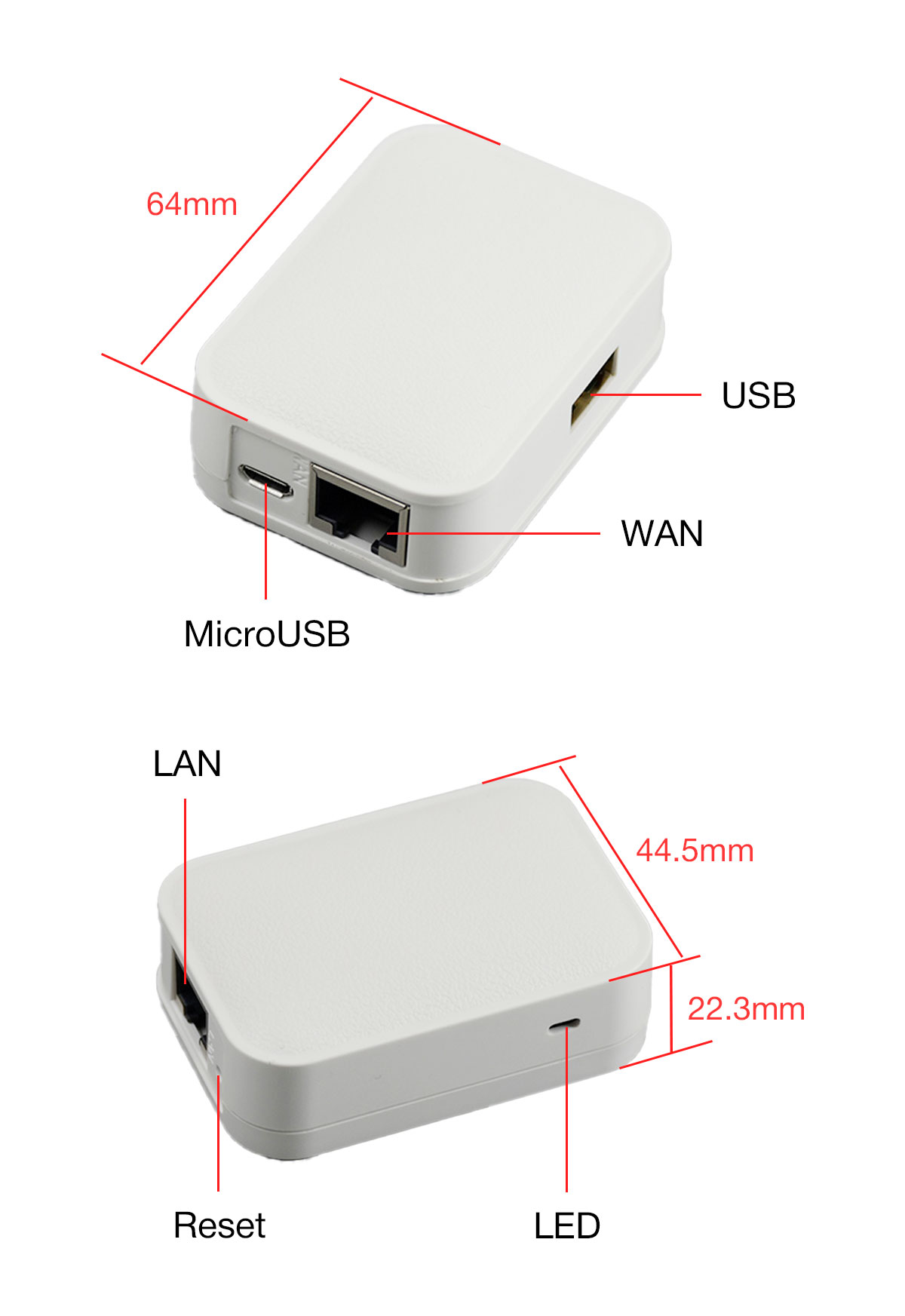

Product Interface
PICTURES(PCBA)

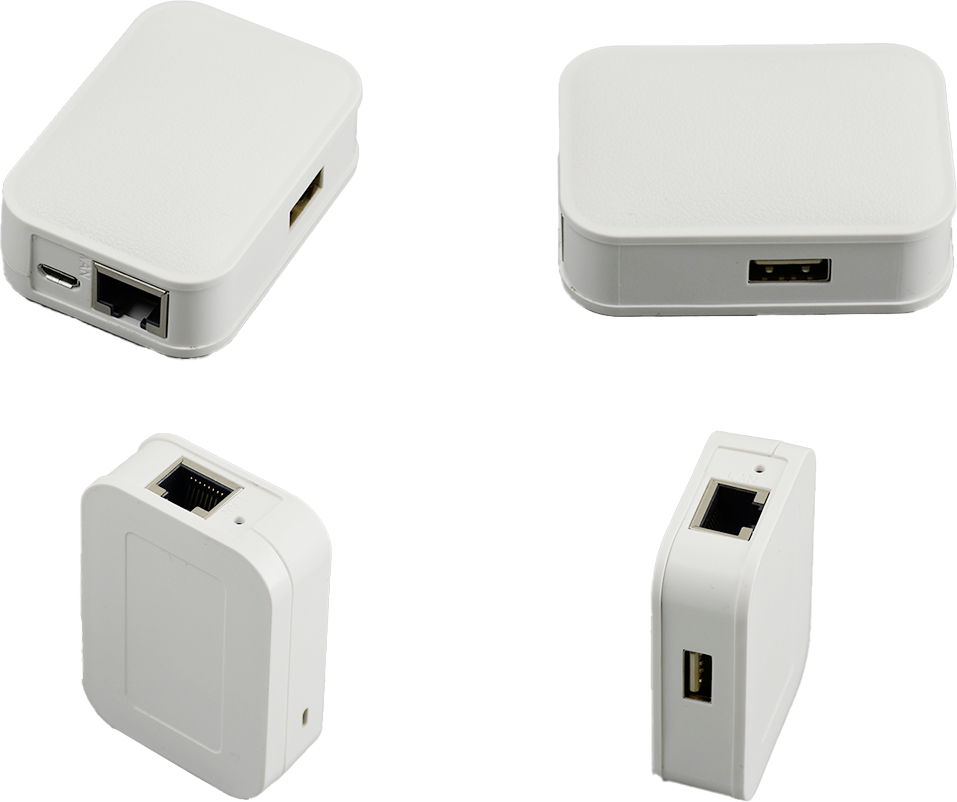

Hardware Display
