Description
OoliteV1.1 is a highly integrated and High transmission power IEEE 802.11n 1×1 2.4 GHz Systemon a Chip(SoC) for wireless local area network(WLAN) AP and router module.
OoliteV1.1 includes a MIPS 24K processor and integrated serial Flash, DDR2, two-port IEEE 802.3 Ethernet Switch with MAC/PHY, one USB 2.0 interface , I2S/SPDIF-Out audio interface, SLIC VOIP/PCM interface, UART, and GPIOs that can be used for LED controls or other general purpose interface configurations.
OoliteV1.1 is designed for smart home deice, wifi hard disk, WiFi router board, remote monitoring, remote video, Industrial control DIY and so on.
OoliteV1.1 power consumption is very low,usually no more than 0.4W, suitable for battery products, it has a 150M wireless transmission rate, up to 21 gpios. All can be defined for input or output.
Hardware spec
| CPU: AR9331 400Mhz MIPS core |
| RAM: 64M DDR2 RAM |
| Flash: 16M SPI flash (32M Optional) |
| Wireless Speed: 150Mbps |
| General GPIO: 21 (except TX, RX) |
| USB: USB2.0 master interface, Support USB hub extension |
| Power Supply Voltage: 3.3V |
| Port: 1 WAN and 1 LAN 10/100Mbps network interface |
| Antenna: Half hole Pinout antenna /IPEX connector antenna |
| Debug: Serial debugging interface has been out. |
| Transmit Power reaches 18dBm |
| Product Size: 27.5MM * 51.4MM ± 0.1mm |

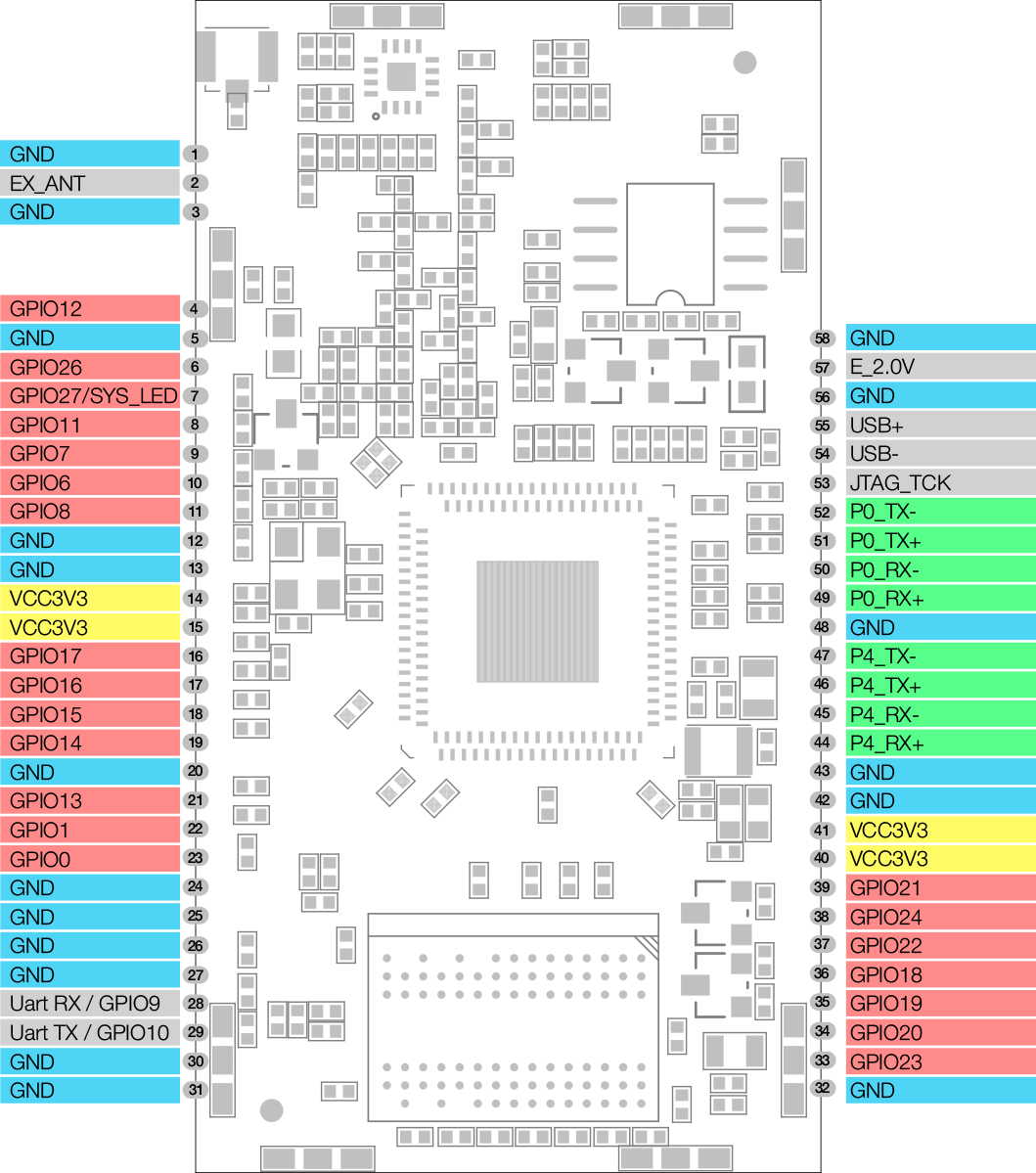

Hardware interface

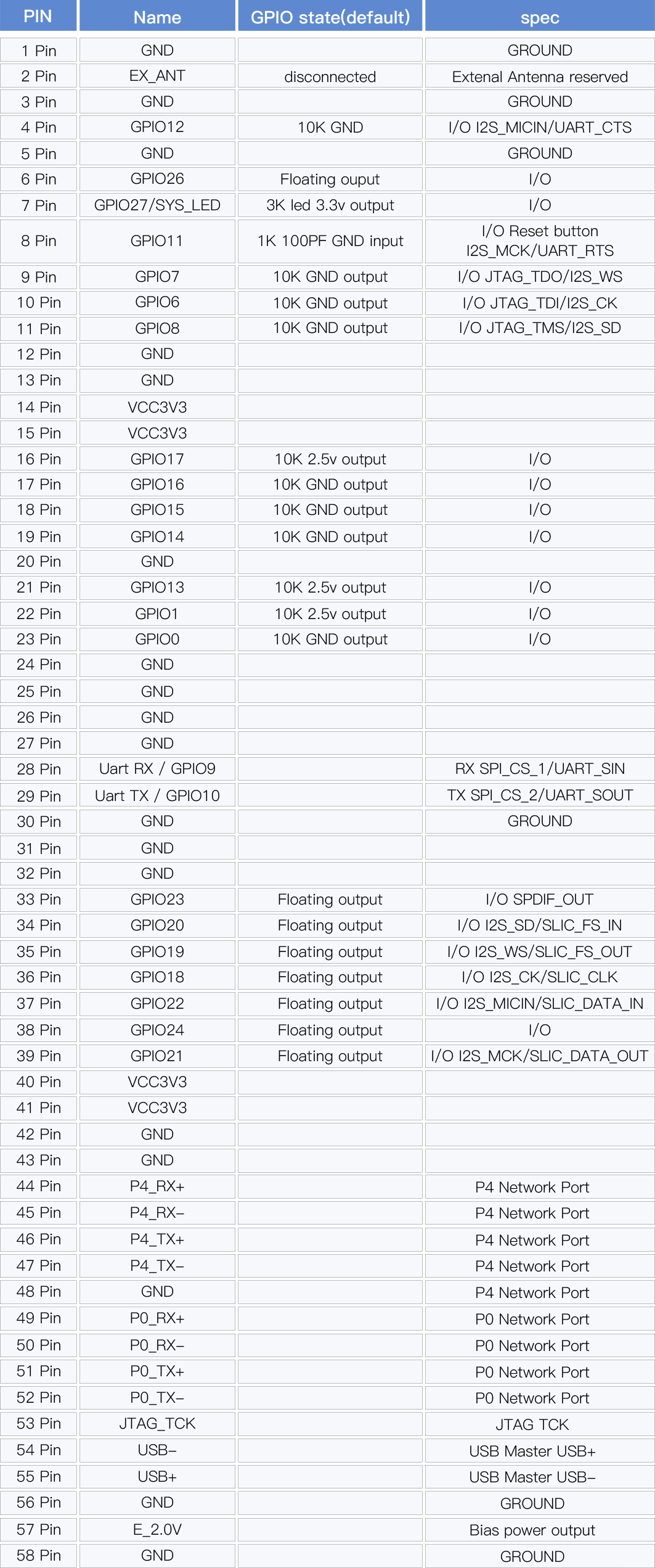

Pins Descroption

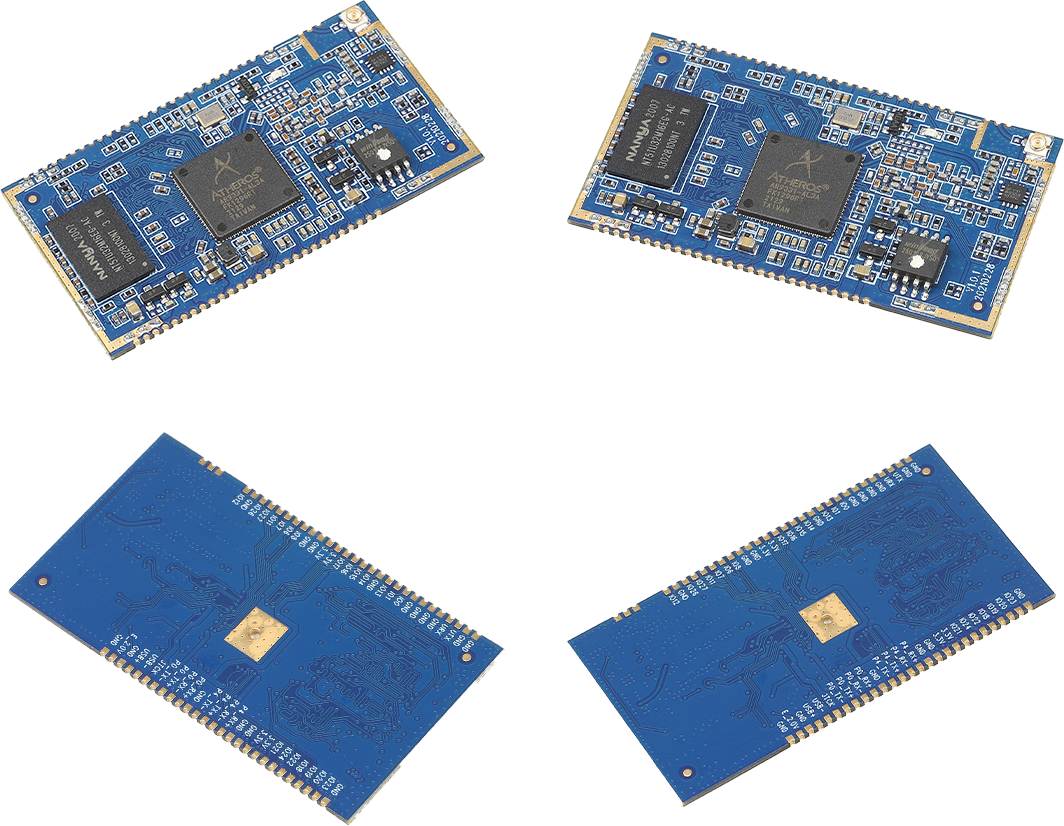

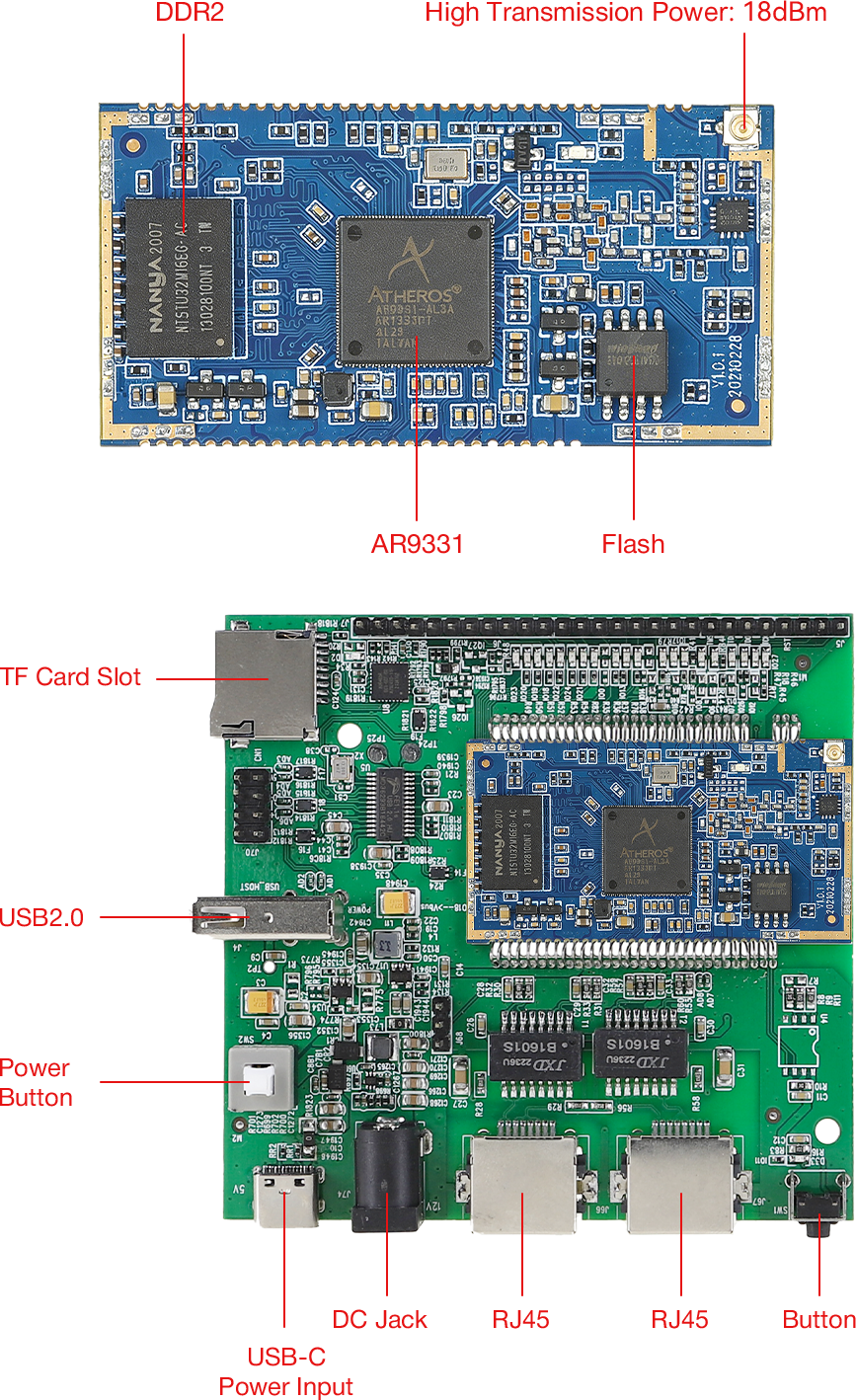

Hardware Display
